5 Gallon Water Project - 20 Liters
GIECL as a pioneer in the field of water treatment equipment is driven by 3 major principles - Enterprising, Innovation and Perfection. Our 5 Gallon Water Project - 20 Litres is another one of our successful endeavors that has provided best mineral water to various regions around the world.
The 5 gallon water production line is a fully automatic project with no human intervention of any kind. Specifically designed water bottling plant equipment is set at every stage of the production line enabling us to produce 1000 jars of 20 liters per hour. The process begins with automatic cap removal and moves on to a series of brushing and washing of the containers inside and out. Prepped up bottles are then installed, filled with best mineral water Plant and sealed with lids. Bottled mineral water contains then roll out of the plant ready for consumption.
GIECL has collaborated with international manufacturers to source top class components and raw material. Thus our clients are delivered the best in the business turnkey water bottling plant equipment.

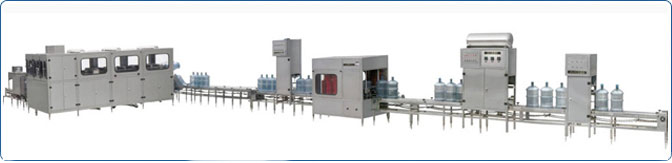

5 gallon Drinking water production line:
Today, drinking water is more and more important for human life.
120-200Barrel/H 5Gallon filling machine
Automatic pull lid machine
 |
Overall dimension：500*500*1750 Material：304 Stainless steel |
|
Pulling head：1 |
|
Air consumption：0.05m3/Min |
|
Production capacity：200 barrel/H |
|
Run route switch：1piece SHANGHAI |
|
Frame structure：38*38*1.2 Stainless steel |
|
Sealing board：1.0thickness，304 Stainless steel |
|
Pneumatic element：AIRTAC |
|
Voltage：24V（Electromagnetic） |
Automatic outside brush
|
Material：304 Stainless steel |
|
Overall dimension：1000*1000*1400 |
|
Motor power：0.75KW TAIZHOU of ZHEJIANG |
|
Water pump:0.37 KW NANFANG brand |
|
brush：united banister brush |
Automatic inside brush
|
Material：304Stainless steel |
|
Overall dimension：1200*650*2000 |
|
Brush head：3 |
|
brushing time：batch- linear style |
|
Production capacity：120-200B/H |
|
Power：220W TAIZHOU of ZHEJIANG |
|
Pneumatic element：AIRTAC TAIWAN |
|
Soda solution rinsing |
|
Electromagnetic：1/2 AIRTAC |
|
PLC：Mitsubishi JAPAN |
|
Frame structure：38*38*1.2mm Stainless steel |
|
Board ：1.0mm thickness |
Automatic elevation barrel machine
|
Overall dimension：5000×600×700 |
|
Pneumatic element： AIRTEC TAIWAN |
|
In order to reduce the friction on the battle bottom, adopting the engineering plastic for conveying the empty barrel |
|
Gearing： HA’ ER BIN Bearing factory 206 2set |
|
Frame structure： 38×38 304stainless steel can adjust the height |
|
Motor：Non-grade speed regulation TAIZHOU of ZHEJIANG |
Rinsing/ Filling / Pressure lid
|
Production capacity：120-200B/H | ||||||||||
|
Material：304 Stainless steel | ||||||||||
|
Frame structure：75*45*1.2mm Stainless steel | ||||||||||
|
Electrical consumption：4KW | ||||||||||
|
Pneumatic element ：AIRTACT | ||||||||||
|
PLC：Mitsubishi Japan | ||||||||||
|
Pump： 6sets NANFANG Hangzhou | ||||||||||
|
Handling lid motor： 140W ZHEJIANG | ||||||||||
|
Electrical element：DELIXI | ||||||||||
|
Overall dimension：4200*1000*1600mm | ||||||||||
|
working position distribute： | ||||||||||
|
|||||||||||
|
Filling head：3piece | ||||||||||
|
pressure lid part chain pressure lid Motor power:180W |
Shrinking film
|
100degree steam Automatic controlling temperature |
|
Overall dimension:1000X500X950 |
|
Power:3KW |
|
Automatic steam generator 1 set |
Output barrel conveying
|
conveying direction depends on user chose |
|
Material：304 Stainless steel |
|
Basic length：5M |
|
Speed regulation motor：0.75KW TAIZHOU of ZHEJIANG |
|
Conveying belt：191.5*38.3 engineering plastic |
|
Overall dimension：5000*500*150mm |
Lamp inspection
|
Inspection capacity：200B/H |
|
Power：90W |
|
Overall dimension：800*300*1200mm |
|
Material：304Stainless steel |
|
inspection lamp： PHILIPS |
400 BPH Line – Complete Automatic from A to Z
Working flow sheet:
5 gallon bottling production line function include:
Auto removing caps → Bottle outer washing → Auto bottle install → Auto washing filling capping (main machine) → Sealing → finished product (Auto working fully all position)

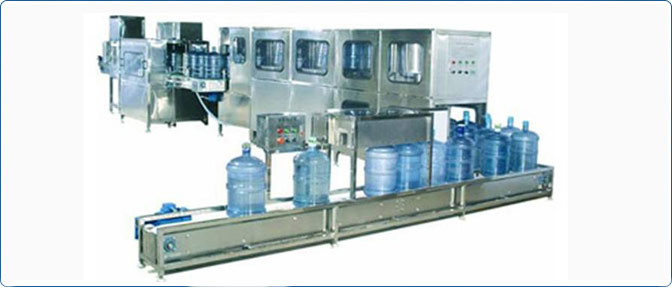

5gallon Drinking water production line (400BPH)
| Name | Photo | Details: |

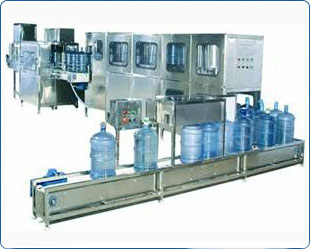

Complete line |
 |
Auto remove caps, bottle outer washing, auto install bottles to the main machine (washing bottle, filling water, capping), auto shrink the label film |
| Detail of Combination | ||

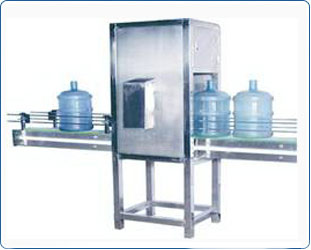

Auto cap remover |
 |
2) Telepathy bottles and auto remove caps 3) Pneumatic working |

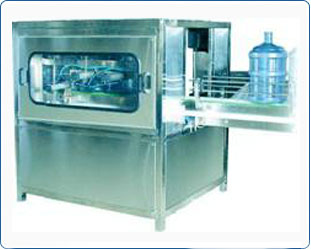

Auto bottle outer washing machine |
 |
2) Telepathy bottles 3) Washing bottles with brusher |

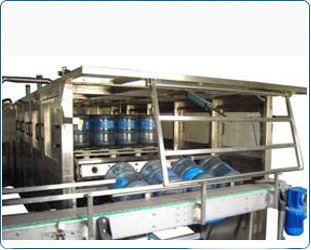

Auto bottle install machine |
 |
1) Make of stainless steel-304 2) Telepathy bottles 3) Pneumatic put bottles to the Washing Filling Capping Machine |

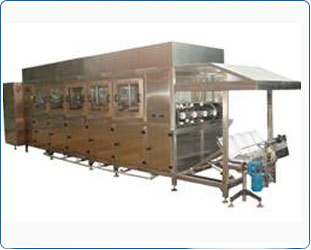

(main machine) |
 |
1) Washing bottle with chemistry and pure water, filling water speediness and capping all right 2) High efficiency and working stabilization 3) Auto working by PLC-control |
Shrinking machine |
 |
2) Steam shrink labels |
| Name | XG-100A (400BPH) | Brand |
| Cylinder | 63*450*1pcs | Taiwan AirTAE brand with CE marks |
| 40*350*2pcs | ||
| 40*400 | ||
| 50*50*2pcs | ||
| F.R.L. Combination | BFC-3000*1 item | |
| (Water and oil separator) | ||
| Electric appliances | 1 series | Taiwan brand with CE marks |
| Programmable Logical | FP1-14-AC*1 item | Panasonic brand made in china with CE |
| Controller(PLC) | Expansion FP1-E8*1pcs | |
| Temperature display | OMRON 1pc | |
| Stainless steel pump | BLZ 370W*6pcs |
Made in China, Guangdong with CE marks |
| Cap ordering | 90YYJ60-3 1：30*2 pcs | Made in China Zhejiang with CE marks |
| Electric monitor | ||
| Stainless steel Electromagnetic Valve |
ZCS-15L*2 pcs ZCS-25L*3pcs |
Made in China, Chongqing CE |
| Stainless Armor plate | 304 | |
| Pipe | 304 | |
| Power | 6500W (including heat generating pipe 2KW) |
|
| 2 lines 7 sections | ||
| Working sections |
4 position for dry bottles 5 & 6 washing positions with recycled pure water inner flushing 7 position with pure water inner flushing |
GIECL Automatic Turnkey Bottled Water Project for Mineral Water Industry

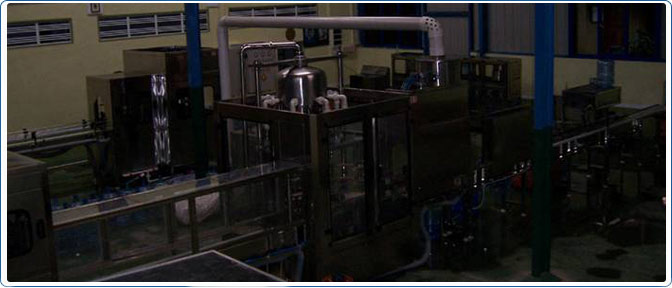

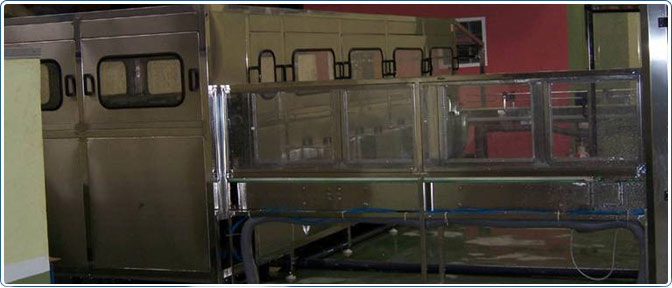

5 Gallon Automatic High Speed Line
Rotary 1000 jar per hour Fully Automatic 5 Gallon Brushing, Washing in and Out with Filling and Capping with Auto Loading and Discharge with Neck Shrink labeling
5 Gallon High Speed Machine
GIECL takes the complete turnkey project as per customer's requirement. GIECL has affiliation with related machinery manufacturers and have executed such projects nationally and internationally.
|
GIECL takes the complete project right from designing, engineering, manufacturing, erection and commissioning at site with trail production. |
|
GIECL provides all technical supports for buildings and lay outs for projects. |
|
GIECL supplies all equipments as required and are responsible for its installation. |
|
GIECL supplies all components as per international standard and multinational manufacturer norm. |
|
GIECL supplies all machineries with standard spares and consumables with supply and post monitoring of its uses. |
|
GIECL turnkey project's key factor is its low production cost as it is working by optimizing efficiency. |
|
GIECL also provides 24 hours online phone and physical service back up to its Customer having contract with UPS and DHL services for immediate supply. |
|
GIECL believes in building strong and long term customer relationship. |
