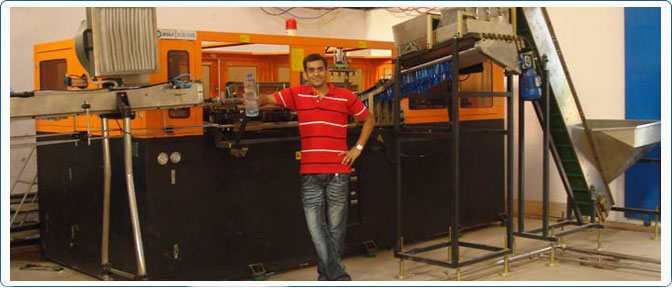

Automatic Pet Blow Moulding Machine

GIECL manufactures excellent quality Automatic PET Blow Moulding Machines for PET bottle production. Our Automatic PET Blow Moulding Machines have wider wide-mouth capability, faster production rates, and shorter changeover times. Also have features such as preferential heating or heat-setting capability.

GIECL is one of the leading manufacturers of PET Blow Moulding Machines for PET bottle production. The beverage industry is expanding and the demand for pet bottles is also rising. GIECL manufactures excellent quality Automatic PET Blow Moulding Machines for PET bottle production. We cater to a large consumer base who belongs to the beverage industry. Our automatic pet blow moulding machines feature wider wide-mouth capability, faster production rates, and shorter changeover times. They also have features such as preferential heating or heat-setting capability.

Our Two stage Plastic PET machines are capable of making two types of shapes of bottles- round and flat styles. This machine helps in achieving variety of PET containers like mineral water bottle, beverage bottle, cosmetic containers, pharmaceutical containers, pesticide bottle, edible oil bottle and many more to list.

Our pet blow moulding machineries can produce various different shaped PET containers such as mineral water bottle, beverage bottle, cosmetics bottle, medicine bottle, pesticide bottle, edible oil bottle, milk bottle, juice bottle and many more types of Plastic PET Bottles. Thus our pet blow moulding machines can cater to various kinds of pet bottles. They come with both one and two cavities and they produce bottles and jars upto 5 L rates manufacturer at around 1200 bottles per hour.

servo motor operation -
Fully automatic pet blow moulding machine for up to 20 cavities for 20,000 bottles per hour

Prodcution Speed	:	2000 Bottles per hour to 20,000 bottles per hour
Bottle volume	:	200 ml – 1500 ml
Container	:	pet, pp
bottle type	:	csd / water/ hotfill

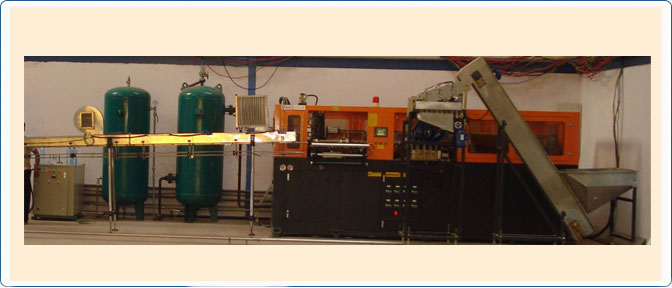

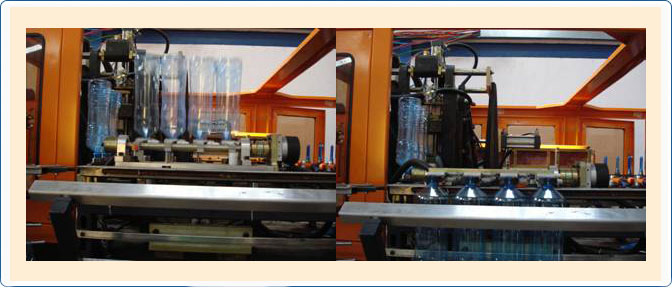

4 cavity blowing machine with air receving tank and water chiller with automatic bottle discharge to filling machine without bottle drop

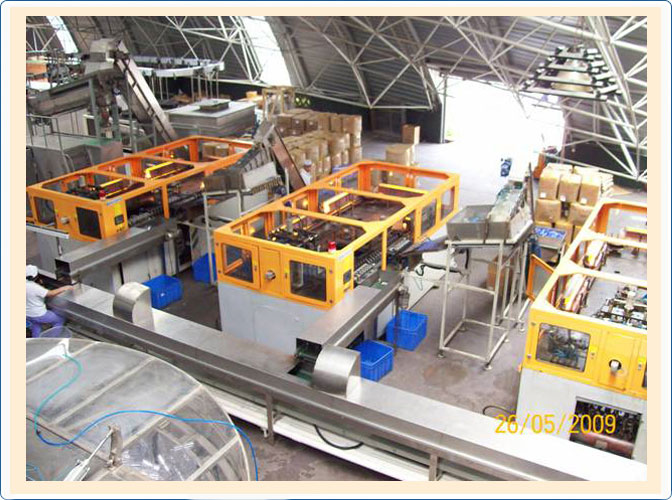

SPSB Series of Two Stage PET Blow Moulding Machine

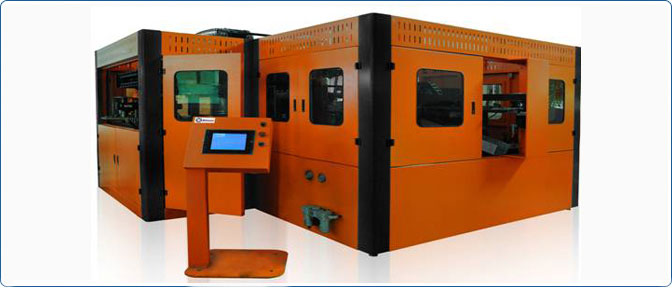

6 cavity machine online with conveyor connected with bottle unscrambler

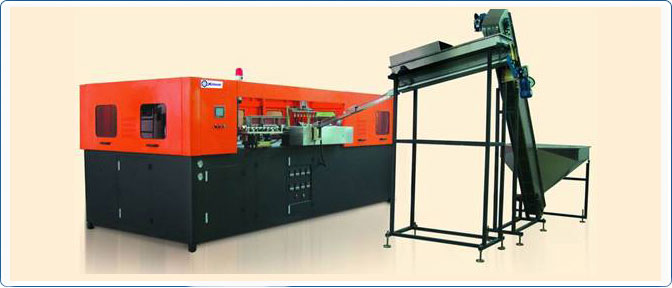

AUTOMATIC PET BLOW MOULDING MACHINE

MACHINE TECHNICAL SPECIFICATIONS

Model	Unit	SPSB 02-3	SPSB 02-5	SPSB 04-2	SP-Flex 02-2	SP-Pristine 04-0.5	SP-Pristine 04-2
Production Rate	BPH	2400	1200	4000	1800	4800	4800
No of Cavities	-	2	2	4	2	4	4
Max Container Dia	mm	130	170	105	115	65	85
Max Container Height	mm	350	350	305	350	220	350
Max Container Volume	Liters	3	5	2	2	0.5	2
Max Neck Size	mm	32	120	32	96	32	32
Length (A+B)	mm	5600	5600	5900	5600	5900	5900
Width (C)	mm	2800	3300	4000	2250	3000	3560
Height (D)	mm	2400	2400	2700	2300	2300	2300
Height (E)	mm	3300	3300	3500	3300	3500	3500
Weight (approx)	Kg	5700	6000	7000	5000	5700	6500
Electrical	-	-	-	-	-	-	-
Total Load	Kw	39	42	75	19	38	75
Heating Load	Kw	28	28	56	15	24	56

AIR RECOVERY SYSTEM

Blowing Air recollected in separate Air Reservoir before Exhaust. The same air is reused for all Pneumatic operations in the machine, practically eliminating the requirement of Operations Air, and thus reducing capital and recurring cost.
